Do More Than Dig with That Compact Excavator with These 13 Attachments

Me Photo
Updated May 13, 2021

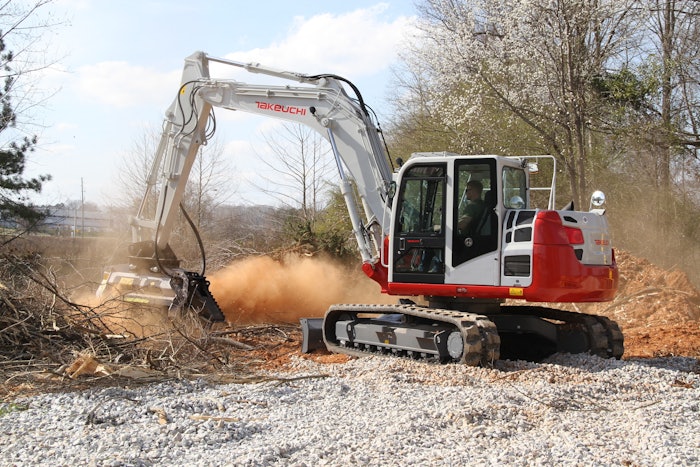

Takeuchi mulcher in operation on jobsite
Takeuchi mulcher

With these 13 attachments, you can clear land, crush concrete, compact soil and more with your compact excavator. We also present some tiltrotators, thumbs and quick couplers to make life easier for operators.

Here's a rundown of the 13 compact excavator attachments:

Takeuchi gives its mulchers IQ technology, an advanced load-sensing system for matching rotor speed to the job. The Takeuchi IQ technology uses an onboard controller that receives signals from pressure and speed sensors on the mulcher’s hydraulic system. The controller uses these signals to determine the correct rotor speed. The motor is electronically adjusted on the fly, and calibration can be done with the push of a button. Takeuchi IQ technology also results in less load on the carrier, for improved productivity.

plate compactor in operation on construction jobsiteBlue Diamond Plate CompactorThe Blue Diamond Plate Compactor can be used on excavators, backhoes, skid steers and mini machines. It is designed to protect the machine from excessive vibrations without reducing compaction ability. It also reduces noise. The plate compactor is the same width as standard trenching buckets and has a high-pressure cutoff valve to protect the motor. The C310 model weighs 552 pounds for compact excavators weighing 5,000 to 12,000 pounds, and the C410 at 880 pounds fits those weighing 12,000 to 22,000 pounds.

Okada 60bOkada's TOP 60B hammer uses nitrogen gas to cushion the piston on the upstroke and increase piston downstroke for demolishing concrete structures, building foundations, pavement, trench rock and other projects. It has a long stroke design to increase impact and reduce vibration. Cup seals secure the oil and gas chambers. The 60B is designed for use on 12,000- to 20,000-pound compact excavators, skid-steers and track loaders. It requires 17 to 23 gallons per minute of hydraulic flow at 1,740 to 2,320 pounds per square inch. It breaks at a rate of 730 to 970 blows per minute.

compact excavator with tiltrotator attachment in useAMI Attachments' new AXXIS TR Tiltrotator, powered by NOX, offers the widest tilt range available at 50 degrees in either direction and the most compact design in the industry, the company says. The AXXIS TR, which also rotates 360 degrees, is available for compact excavators, excavators and backhoes. It features a fully enclosed helical actuator instead of cylinders for increased and constant holding torque and allows you to dig narrower trenches. The AXXIS TR is GPS compatible and available with various ergonomic SVAB joystick configurations.

compact excavator with post driver attachment in operationPremier Attachments' PD500 and PD750 post drivers for compact excavators come with a pre-drill option that includes an auger drive to drill pilot holes in tougher grounds conditions. Various mounting brackets are available to fit all makes and models. The PD500 is for compact excavators with hydraulic flows of 10 to 16 gallons per minute and delivers 500 foot-pounds of energy. The PD750 is for 12 to 20 gpm machines and delivers 750 foot-pounds of energy. It is also compatible with skid steers, compact track loaders, mini skid steers and backhoes.

compact excvator with CAT tiltrotator in operationCaterpillar’s TRS6 and TRS8 TiltRotate Systems bring tiltrotator capabilities to Cat's Next Gene compact excavators for using buckets, forks, grapples, brooms and compactors. The TRS6 and TRS enable 360-degree rotation and up to 40 degrees of tilt for maneuvering attachments over, under and around obstacles. The TRS6 and TRS8 take only about four hours to install. They have two interfaces: a top interface that connects the TRS to the carrier machine and a bottom interface that connects various work tools to the TRS.

case hydraulic breakerCase Construction Equipment's hydraulic hammers for compact excavators isolate every blow from the carrier and operator through their cushion chamber and then recycle the energy for the next blow. They have only two moving parts and low recoil. Their installation kits include fully configured and pre-assembled hoses and service tools. They also feature a long-stroke piston for increased energy transfer and reduced recoil. A gas recharged kit is included. They have a three-year limited warranty.

doosan quick coupler attachmentDoosan's quick couplers for compact excavators enable operators to easily change attachments. They can use them to match the bucket width to the trenching task to reduce the chance for over-digging. The operator can switch between heavy-duty trenching buckets and ditching buckets. All of the company's six compact excavators can be equipped with a quick coupler for  increasing their productivity and versatility.

compact excavator with deer plate compactor attachmentJohn Deere’s plate compactor attachments enable compact excavators to compact soil at high vibratory and impulse forces. The PC4, PC7 and PC10 each deliver 2,000 revolutions per minute at regulated flow and are geared toward trench, slope and excavation compaction. The compactors are designed with a large eccentric rotating weight positioned farther from the shaft, increasing impulse forces to 4,000 pounds on the PC4, 6,400 pounds on the PC7, and 8,000 pounds on the PC10. The weight’s positioning also leads to better compaction in granular soils.

montabert antidustMontabert's water mist system for its hydraulic rock breakers is designed to reduce silica dust on jobsites. The system is available for the company’s smaller breakers, such as the SC-22 and SC-28. The spray feature includes an integrated hose-protection design with a water inlet port. Breakers equipped with the system have two lifting points for improved safety and a water nozzle that provides a wide-angle spay. The new mist system is designed to help meet OSHA requirements to reduce workers’ exposure to airborne crystalline silica, which has been linked to lung disease.

epiroc er 250 drum cutterEpiroc Drum Cutters are designed for rock or concrete wall and surface profiling, trenching, foundations, demolition, dredging and rock excavation. A variety of cutting heads are available. The drum cutters use spur gears for energy transmission and reliability. They can be equipped with an optional dust suppression system to meet federal silica regulations. A central fixing system allows the drum cutter to manually rotate 360 degrees without being disconnected from the excavator. They also deliver low vibration and low noise operation

loftness battle ax 20 seriesThe Loftness 20 Series Battle Ax mulching attachment is designed for 10,000- to 20,000-pound excavators with 20 to 70 hydraulic horsepower. The rotor has depth gauges that act similarly to raker teeth on chain saws for feeding material into the drum for maximum productivity. The mulcher has a two-stage cutting chamber. It is available with either four-point beaver teeth or reversible planer blades. A staggered, spiral tooth pattern delivers single-tooth contact with the work surface at all times, and anti-wrap bearing protection minimizes debris in the bearing chamber.

Kubota Hydraulic Quick CouplerKubota offers a hydraulic quick coupler for its entire 3- to 4-ton class of excavators, including the KX033, U35 and KX040. The new quick coupler allows operators to change buckets from the cab in 10 to 15 seconds. The coupler includes custom control packages to fit on each excavator model, including specialized hose kits as well as a spring-applied hydraulic release locking mechanism. The new quick coupler is construction grade, compatible with older-style buckets and engineered for everyday use on the jobsite.
